TAD

TAD-R1TXLTD

$199,995.00USD

A high-end three-way stand-mount speaker with CST coaxial driver, 20 cm woofer, beryllium diaphragms, SILENT enclosure, and Japanese craftsmanship for phase coherence, low coloration, and immersive point-source imaging.

Suggested Tonearm Upgrade:

TA-9000 NEO

Sizes:

SPECIFICATIONS

MODEL NO TAD-R1TXLTD
MODEL Three-way bass-reflex floor-standing
DRIVE UNITS LF: 25cm (10 in.) x 2
Midrange/Tweeter: concentric
16 cm (6 1/2 in.) MF / 3.5 cm (1 3/8 in.) HF
PERFORMANCE DATA Frequency response: 21 Hz to 100 kHz
Crossover frequencies: 250 Hz and 2 kHz
Unit polarity: LF (+), MF (+), HF (+)
Maximum input power: 300 W
Sensitivity: 90 dB (2.83 V @ 1 m)
Rated impedance: 4 Ω
PHYSICAL DATA Weight: 162 kg (357.2 lb)
Dimensions: 554 mm (21 3/4“) (W) × 1,308 mm (51 1/2″) (H) × 698 mm (27½”) (D)
ACCESSORIES Shorting link x 2
Cleaning cloth
Hex wrench
Owner’s manual
Protective cover for woofer x 2

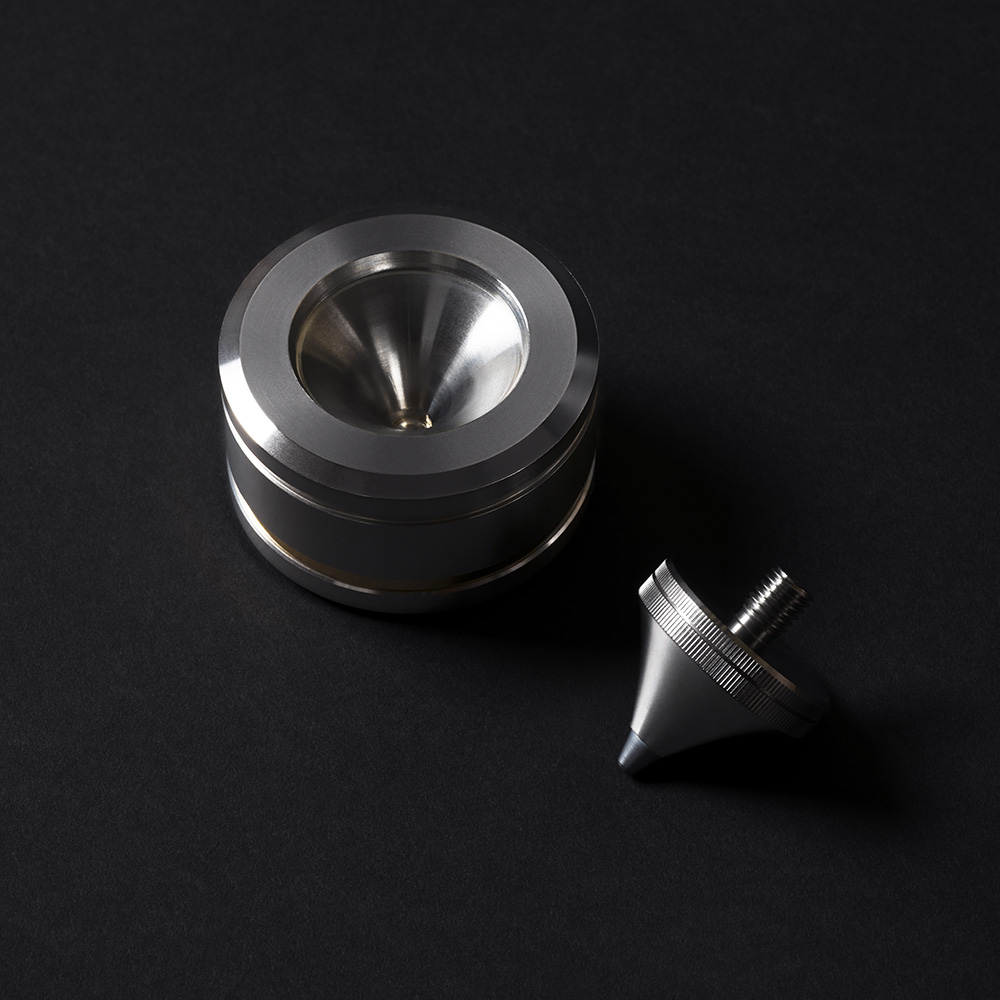

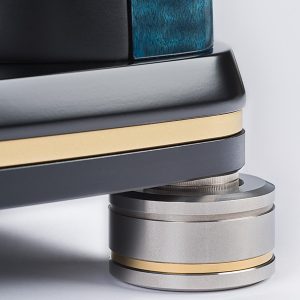

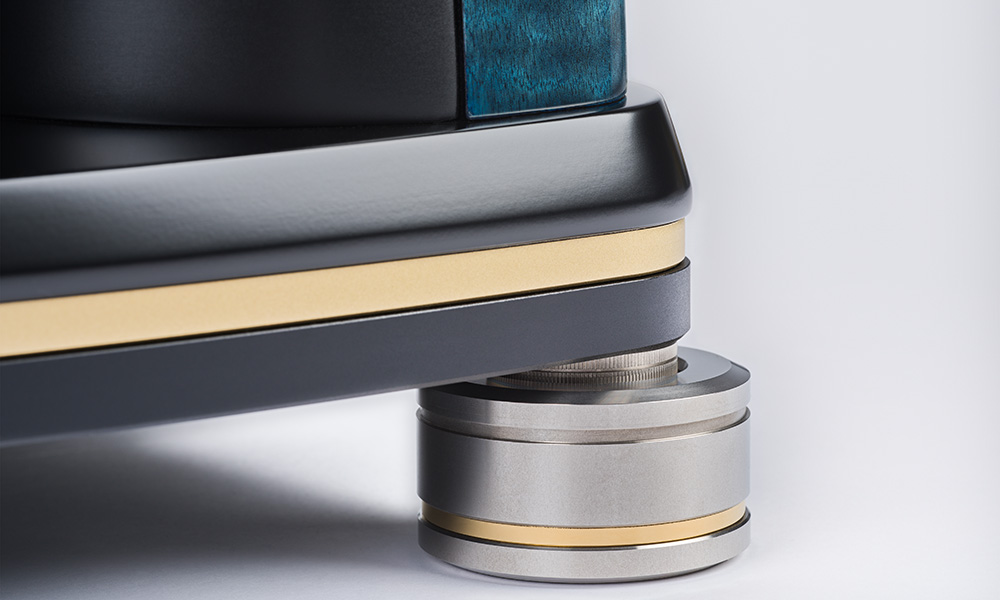

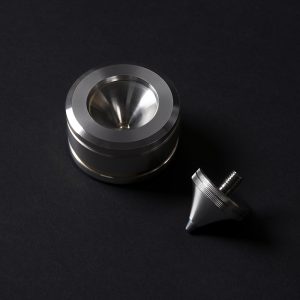

EXCLUSIVE ACCESSORIES Cone-shaped spike x 6
Spike holder x 6
(Coming in a single pack for a pair of speakers)
