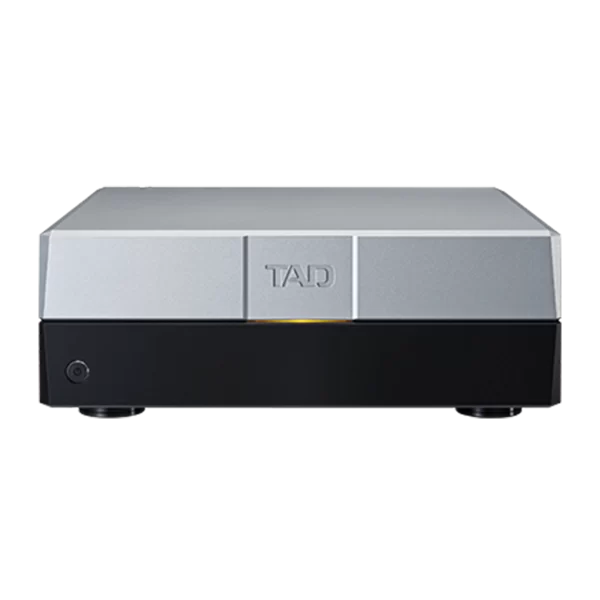

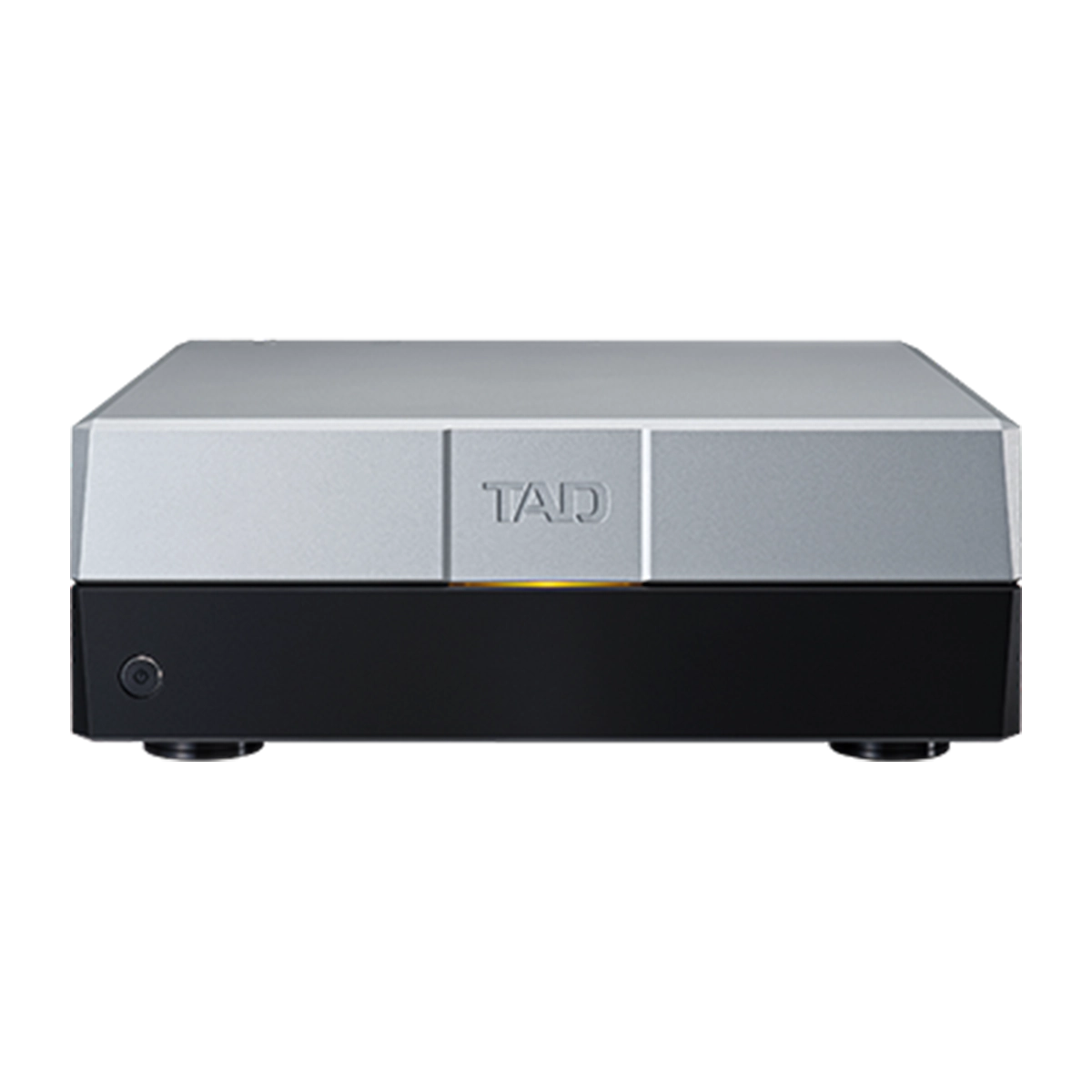

The TADβM2500TX is a power amplifier delivering 550 watts per channel at 4 ohms, featuring a balanced layout, upgraded power transformers, and a solid aluminum chassis. It emphasizes purity, stability, and speed for commanding performance when paired with TAD Evolution Series speakers.
SPECIFICATIONS
| MODEL NO. | TAD-M2500TX |
| POWER OUTPUT | 550 W at 1 kHz, 4 Ξ© |
| RATED DISTORTION | Less than 0.05% at 1 kHz, 275 W, 4 Ξ© |
| SIGNAL-TO-NOISE RATIO | 112 dB or higher |
| FREQUENCY RESPONSE | 10 Hz to 50 kHz, +0/-3 dB |
| GAIN | 29.5 dB |
| INPUT TERMINAL (SENSITIVITY / IMPEDANCE) |
1.5 V / 100 kΞ© (balanced input) 0.75 V / 50 kΞ© (unbalanced input) |
| POWER REQUIREMENTS | AC 120 V, 60 Hz (United States) AC 220 V to 230 V, 50 Hz / 60 Hz (Europe / Asia) |
| POWER CONSUMPTION | 250 W |
| STANDBY POWER CONSUMPTION | 0.5 W |
| DIMENSIONS | 440 mm (W) Γ 170 mm (H) Γ 467 mm (D) 17-5/16 in. (W) Γ 6-5/8 in. (H) Γ 18-3/8 in. (D) |
| WEIGHT | 42 kg (92.6 lb) |
