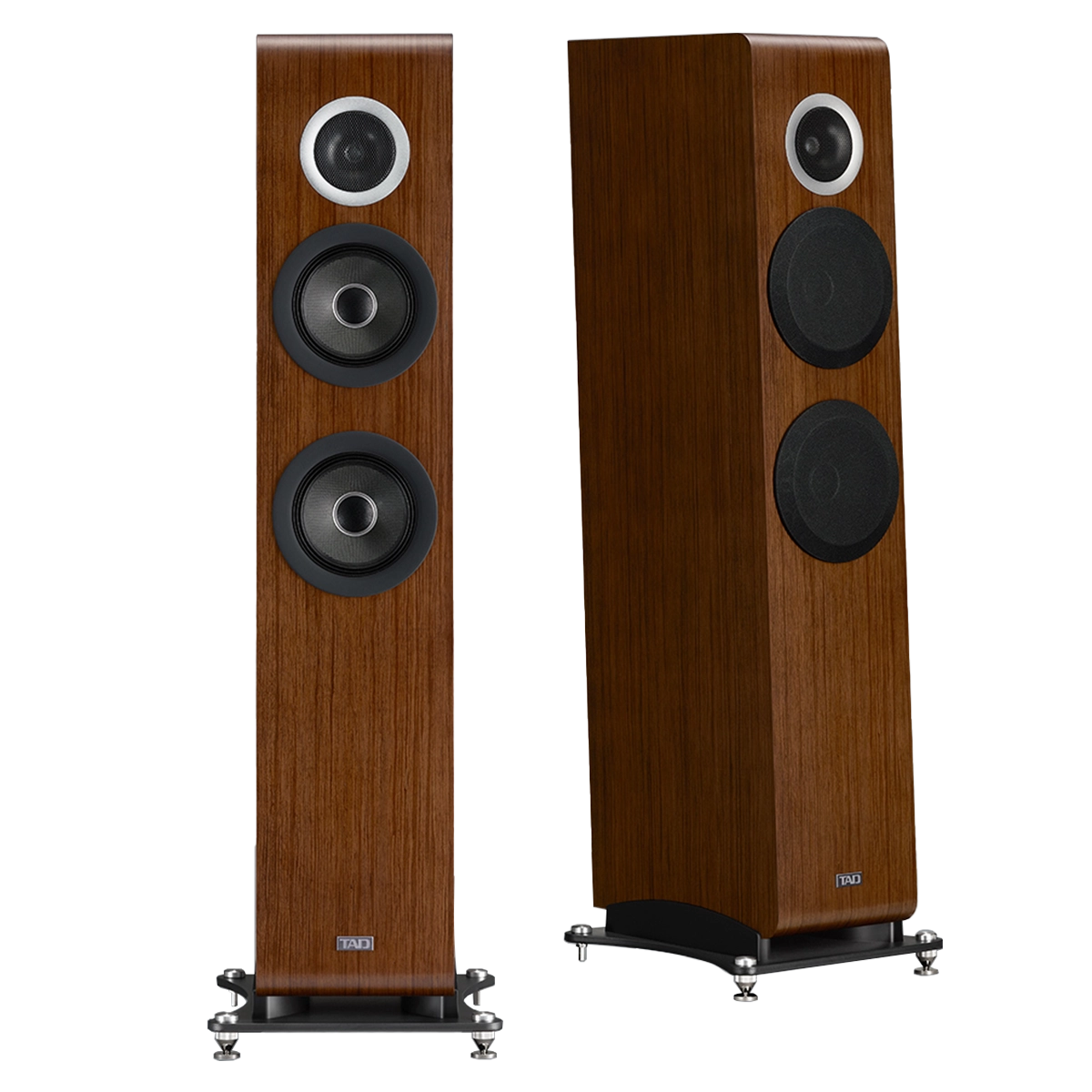

A floor‐standing speaker combining twin woofers with MACC diaphragms and a 25‐mm beryllium tweeter set in a SILENT braced enclosure. From 30 Hz to 60 kHz, it delivers refined clarity, authoritative bass, and immersive stage presence with exquisite craftsmanship.
SPECIFICATIONS
| MODEL NO | TAD-E2-WN |
| TYPE | 2.5-way bass-reflex floor-standing speaker system |
| DRIVE UNITS | Woofer: 15.5 cm (6 1/2 in.) cone x 2 Tweeter: 2.5 cm (1 in.) beryllium dome |
| PERFORMANCE DATA | Frequency response: 30 Hz to 60 kHz Crossover frequencies: 90 Hz, 2.8 kHz Maximum input power: 150 W Sensitivity: 87 dB (2.83 V, 1 m) Rated impedance: 6 Ω (Minimum impedance: 4.5 Ω) |
| WEIGHT | 32 kg (70.5 lb) per unit |
| DIMENSIONS | 320 mm (W) × 1,085 mm (H) (1,113 mm with spikes) × 405 mm (D) 12 5/8 in. (W) × 42 23/32 in. (H) (43 13/16 in. with spikes) × 15 15/16 in. (D) |
| ACCESSORIES | Woofer grille x 2 Short cable x 2 Spike x 3 Auxiliary leg x 2 Spike holder x 3 Anti-slip pad x 4 Overturn preventing spike x 2 Owner’s manual |
