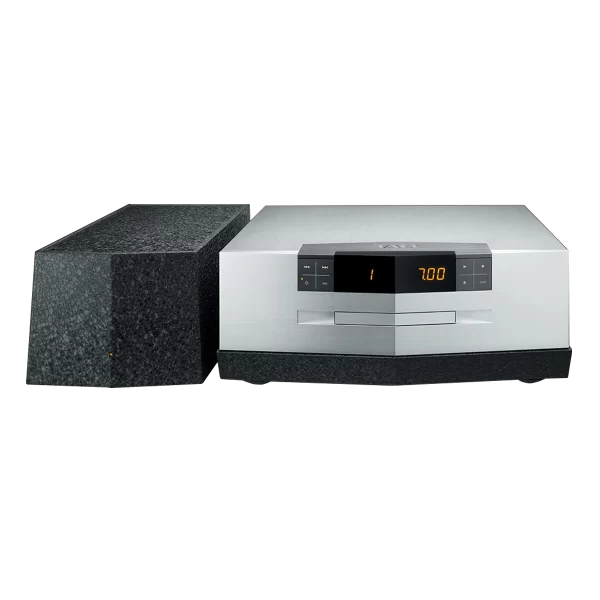

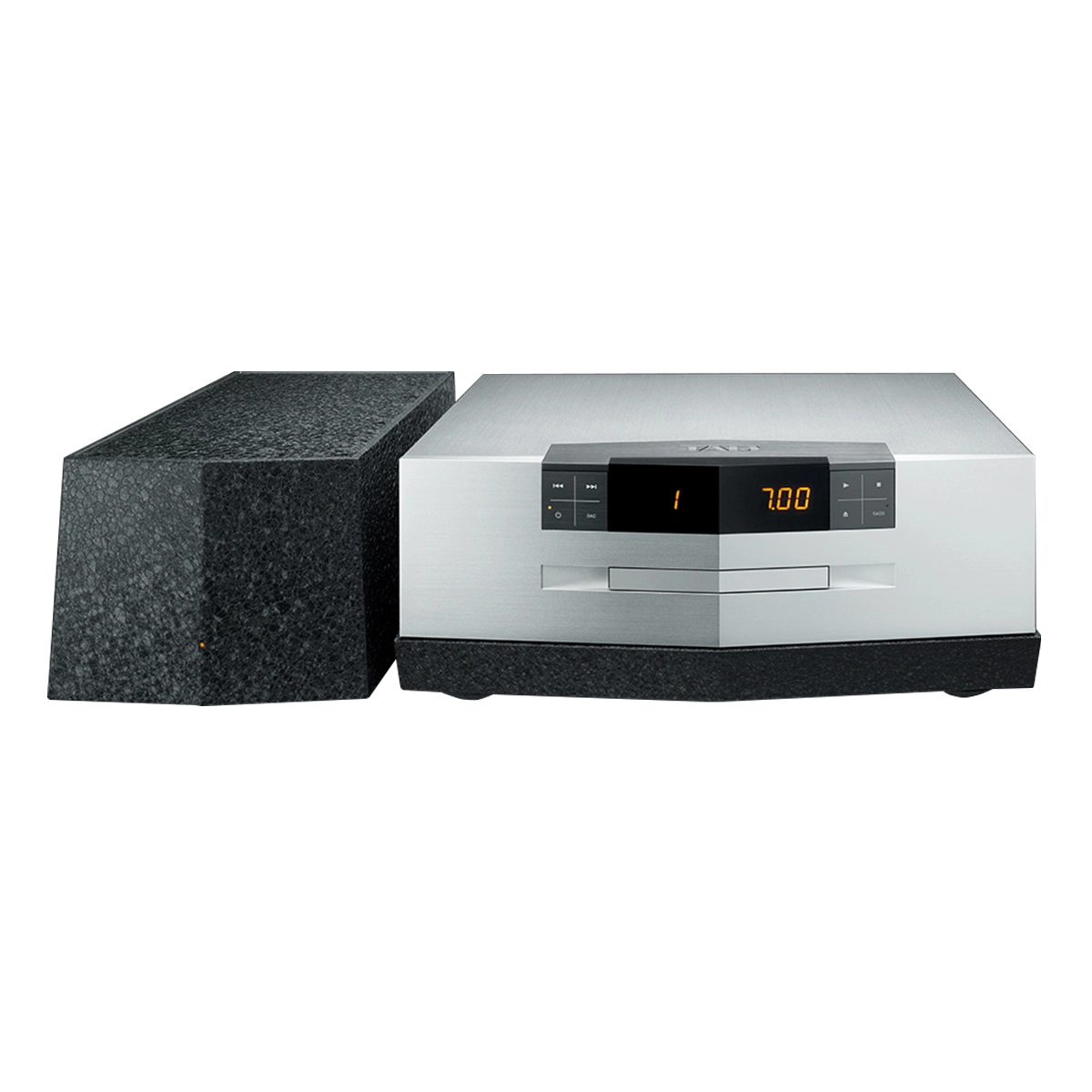

The TAD D700 sets a new standard in audio clarity with its upgraded third‐gen Ultra‐High C/N Master Clock, parallel twin Burr‐Brown DACs, robust die‐cast chassis, and standalone D/A converter mode—reproducing music with uncompromising precision, depth, and purity.
SPECIFICATIONS
| MODEL NO. | TAD-D700 |
| AUDIO OUTPUT | Digital output connectors: XLR connector × 1 Coaxial connector × 1 Analog output: |
| OUTPUT SAMPLING FREQUENCY | 44.1 kHz, 88.2 kHz (CD) |
| FREQUENCY RESPONSE | CD: 4 Hz to 20 kHz SACD: 4 Hz to 40 kHz |
| S/N RATIO | 115 dB |
| INPUT | Digital input connectors: XLR connector × 1 Coaxial connector × 1 |
| INPUT SAMPLING FREQUENCY (XLR / COAXIAL) |
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| POWER SOURCE | AC 120 V, 60 Hz (USA) AC 230 V, 50 Hz / 60 Hz (Europe) |
| POWER CONSUMPTION | 43 W |
| STANDBY POWER CONSUMPTION | 0.5 W |
| DIMENSIONS | Main unit: 450 mm × 185 mm × 440 mm 17-23/32 in. × 7-9/32 in. × 17-11/32 in. Power supply: |
| WEIGHT | Main unit: 26.5 kg (58 lb 7 oz) Power supply: 14.0 kg (30 lb 14 oz) |
