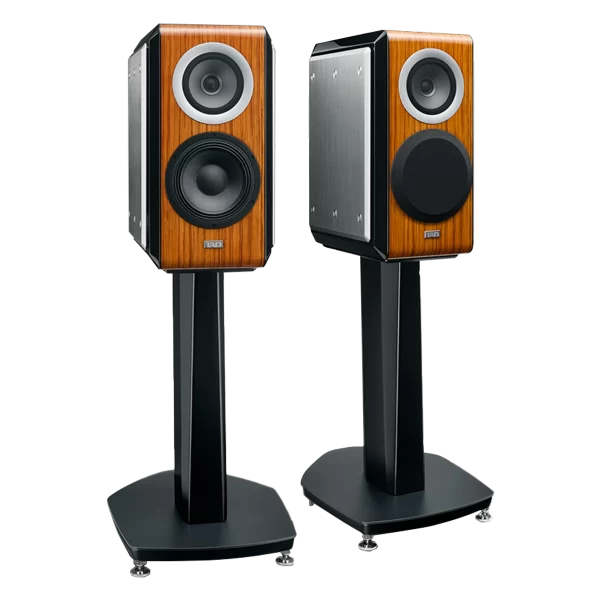

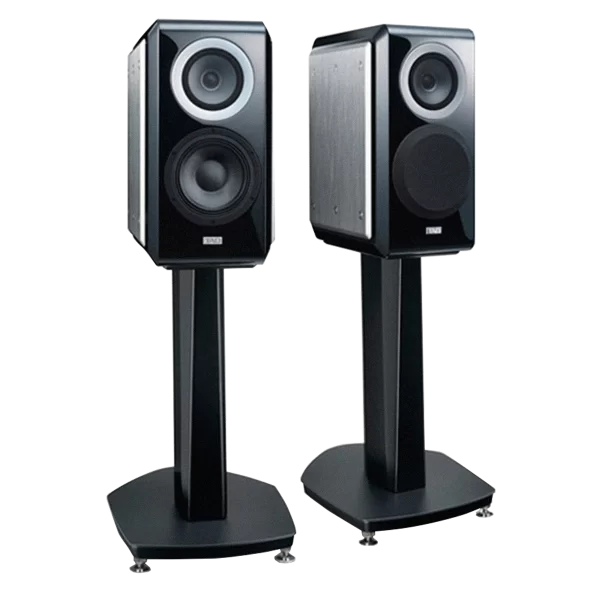

The Compact Evolution One
A three‐way stand‐mount marvel combining CST coaxial mid/tweeter (magnesium + beryllium), an 18 cm woofer with MACS II diaphragm, and bidirectional ADS ports. With finishes in mirror‐wood or piano black, it delivers immersive sound from 34 Hz to 100 kHz—precision, clarity, and refined artistry.
| MODEL NO | TAD-CE1TX-WN / TAD-CE1TX-K |
| TYPE | 3-way, bass-reflex bookshelf speaker system |
| DRIVE UNITS | Woofer: 18cm (7 1/16 in.) cone Midrange/tweeter: concentric 14 cm (5 1/2 in.) magnesium cone and 3.5 cm (1 3/8 in.) beryllium dome |
| PERFORMANCE DATA | Frequency response: 34Hz to 100kHz Crossover frequencies: 250 Hz and 1.8 kHz Maximum input power: 200W Sensitivity: 85dB (2.83V, 1m) Rated impedance: 4Ω |
| WEIGHT | Weight: 29kg (63.9 lb) per unit |
| DIMENSIONS | 287mm (W) × 510mm (H) × 447mm (D)
(11 5/16 in. (W) x 20 1/16 in. (H) x 17 5/8 in. (D)) |
| ACCESSORIES | Woofer grille, short cables x 2, non-slip pads x 4, cleaning cloth, owner’s manual |
