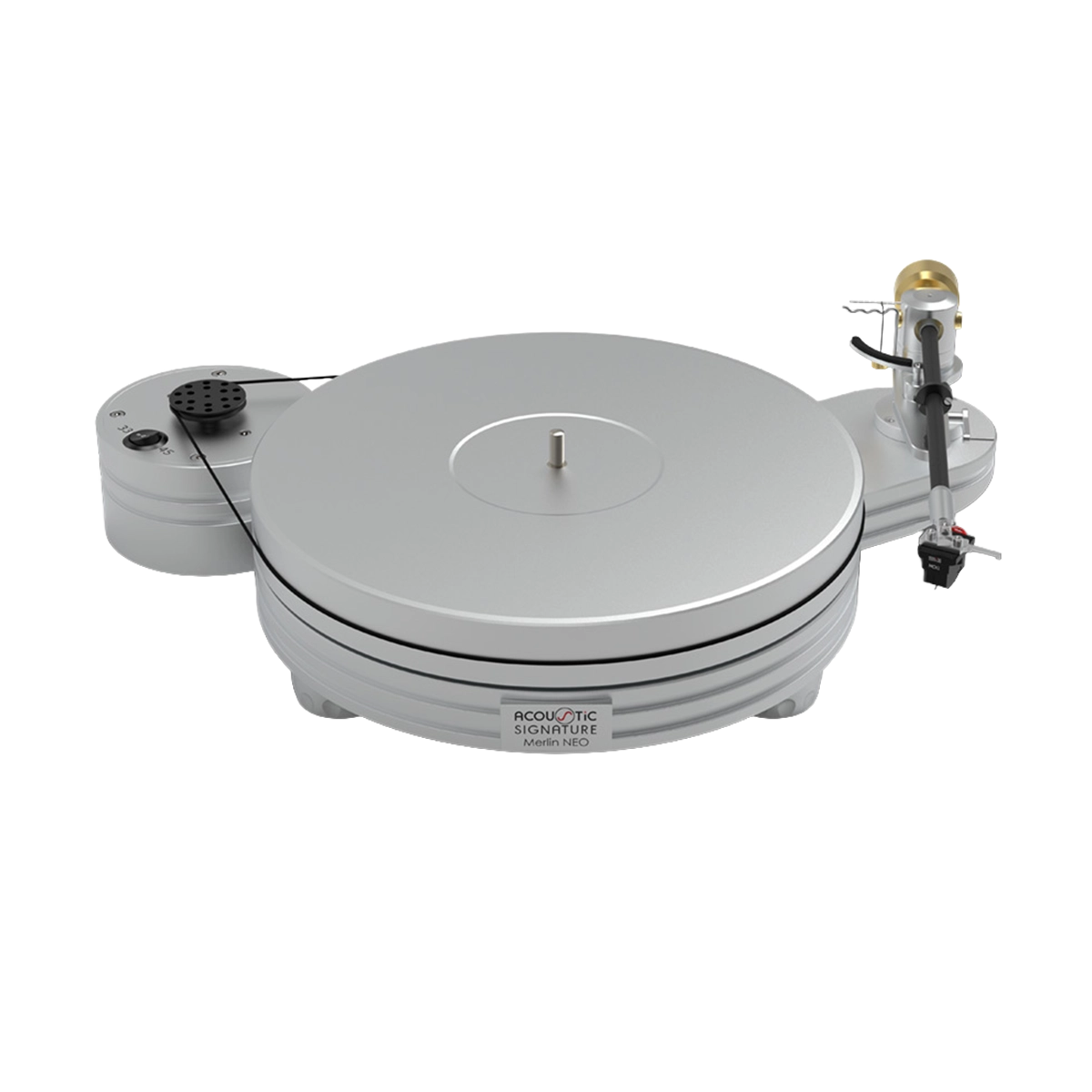

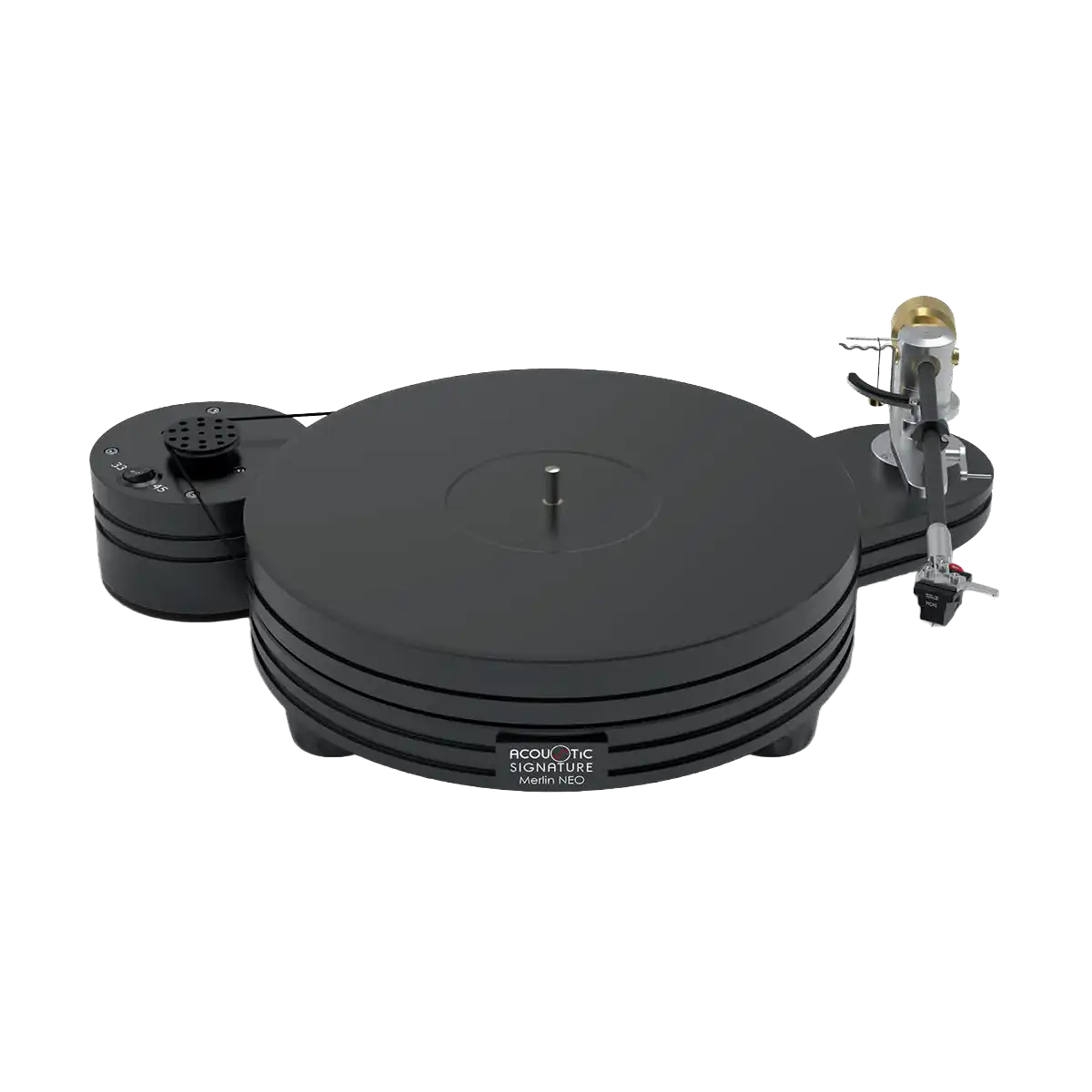

The Acoustic Signature Merlin NEO is a compact, precision-engineered turntable created as part of the company’s 30th Anniversary Edition. Its space-efficient design combines Acoustic Signature’s vibration-control technology, isolated motor system and Dura Turn Diamond bearing in a compact aluminum chassis.
The Merlin NEO uses a single external motor unit with a belt-drive system and speed fine adjustment, supporting 33⅓ and 45 RPM. Level 1 AVC (Anti-Vibration Control) is incorporated into the motor system, while the high-precision Dura Turn Diamond bearing supports the anodized aluminum platter.
A one-piece aluminum chassis provides the main structural platform, while three height-adjustable gel-damped aluminum feet provide support. The turntable includes a Rega tonearm base and is designed to accommodate one TA-500 NEO 9-inch tonearm.
Features:
-
30th Anniversary Edition turntable from Acoustic Signature.
-
External motor unit with one completely isolated AC motor.
-
Belt-drive system with speed fine adjustment.
-
Level 1 AVC (Anti-Vibration Control).
-
External power supply rated at 100–260 V AC, 50/60 Hz with 24 V DC output.
-
Integrated control panel in the motor unit.
-
High-precision Dura Turn Diamond® bearing.
-
One-piece aluminum chassis measuring Ø300 × 50 mm.
-
Anodized aluminum platter measuring Ø300 × 34 mm and weighing 5.8 kg / 12.8 lbs.
-
One Rega tonearm base.
-
TA-500 NEO 9-inch tonearm compatibility.
-
Maximum of one tonearm.
-
Three height-adjustable gel-damped aluminum feet.
-
33⅓ and 45 RPM operating speeds.
-
Dimensions: 474 × 318 × 140 mm / 18.7 × 12.5 × 5.5 inches.
-
Weight: 15 kg / 33 lbs.
-
Available finishes: Black anodized or silver anodized.
